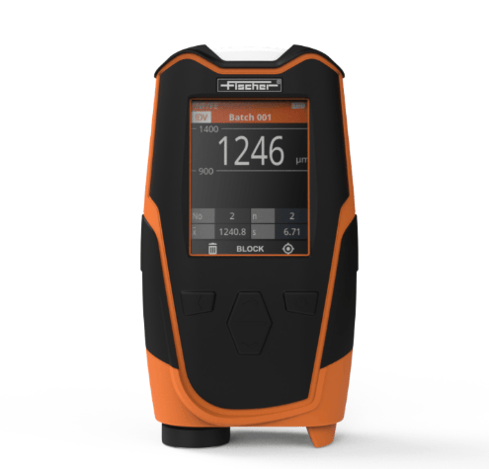

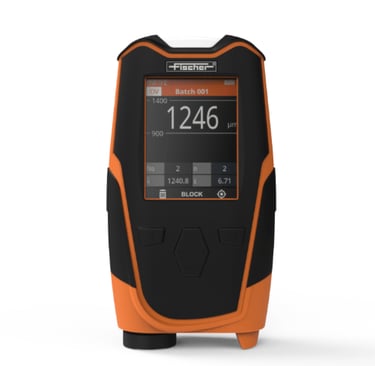

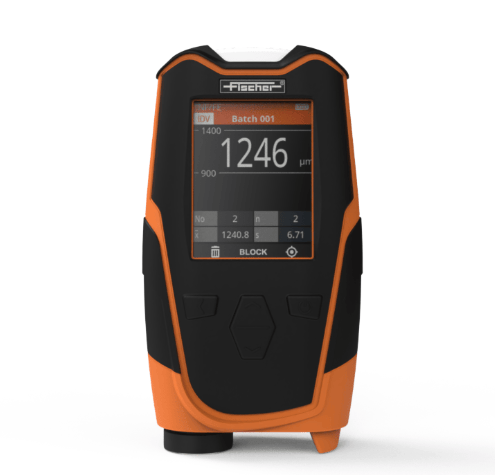

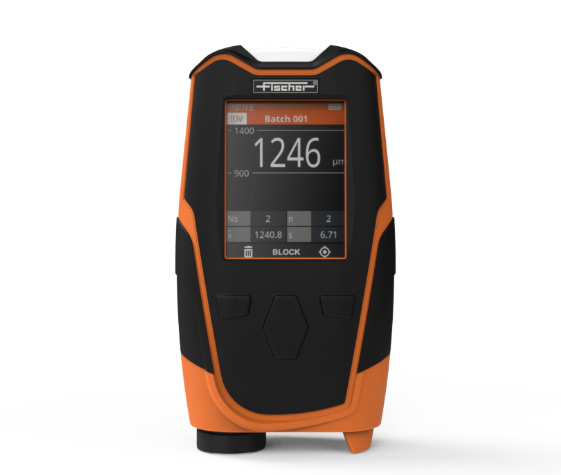

MMS Inspection DFT

Heavy corrosion protection – Simple measurement.

Universal device for quick and easy dry film thickness measurement in corrosion protection.

IP65: Dust- and
splash-proof

Ideal for the

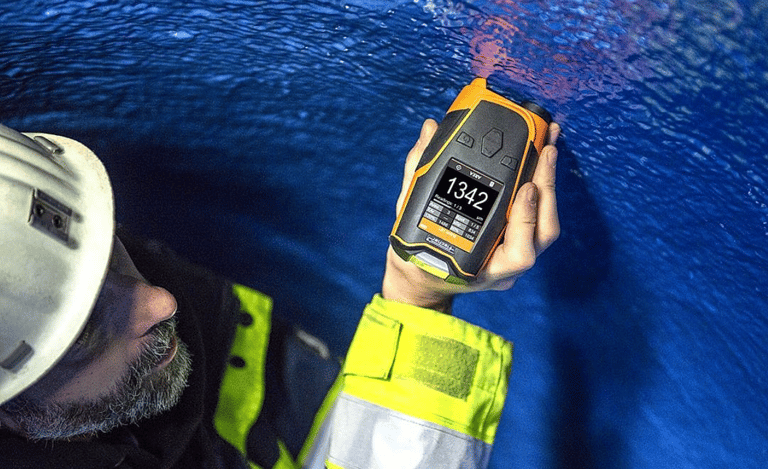

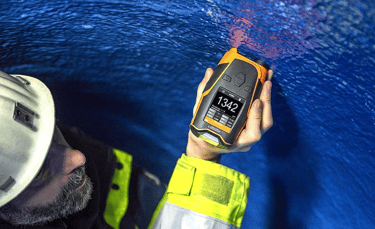

use on-site

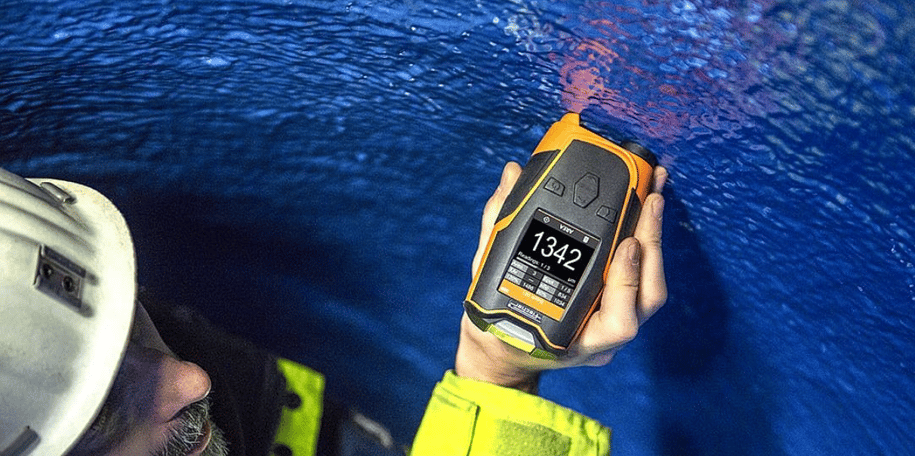

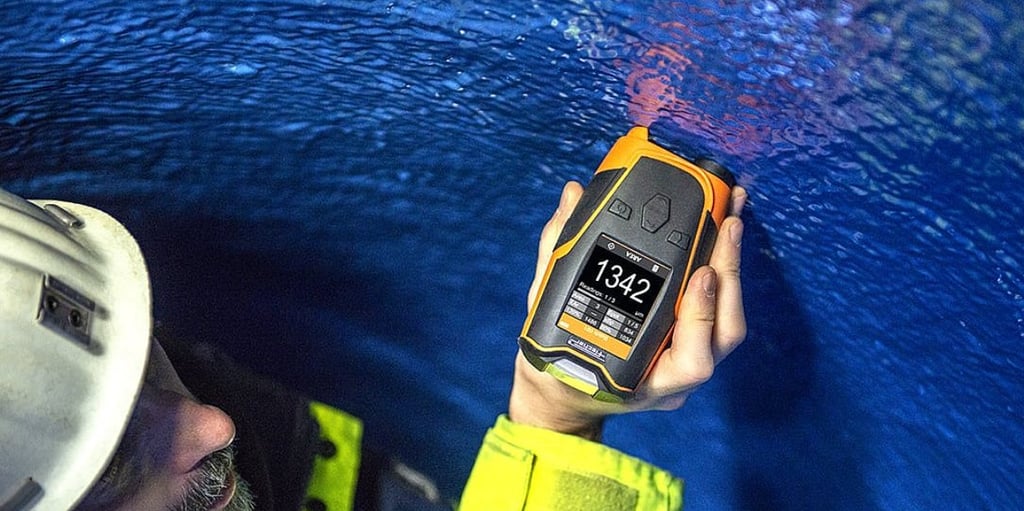

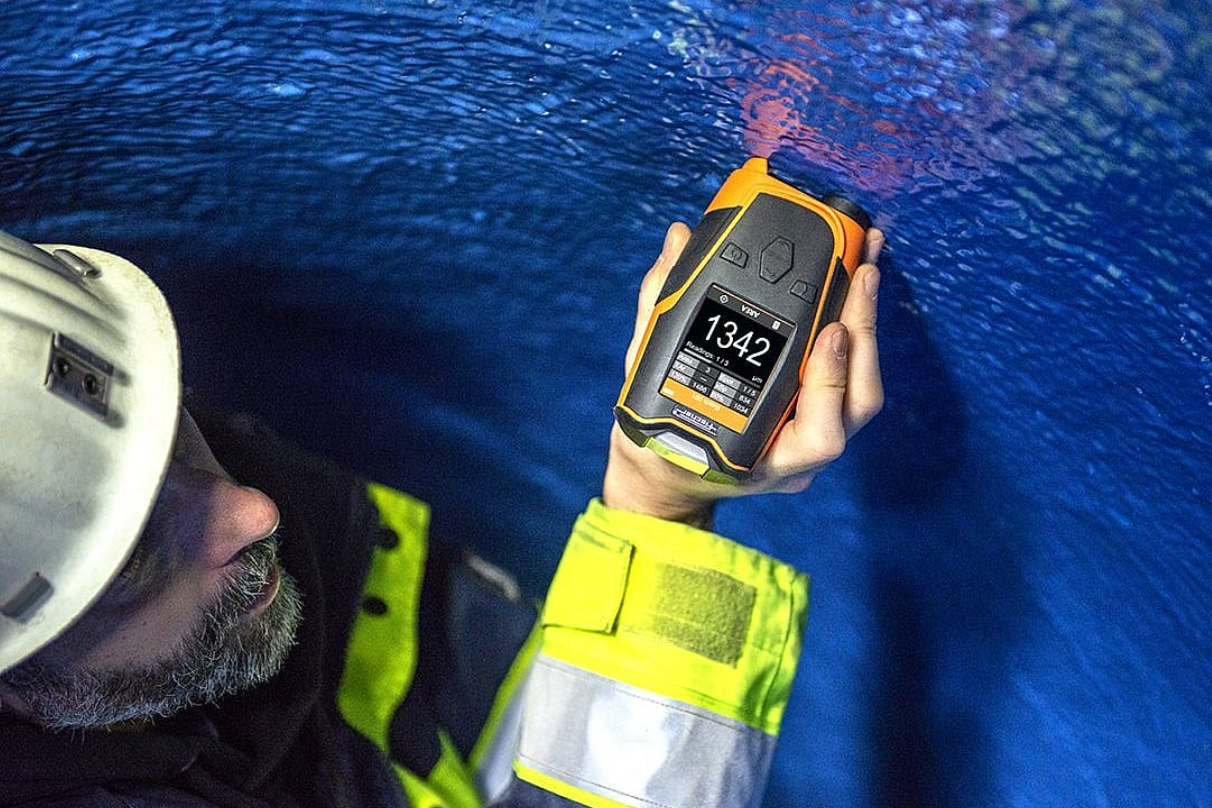

Comprehensive corrosion protection.

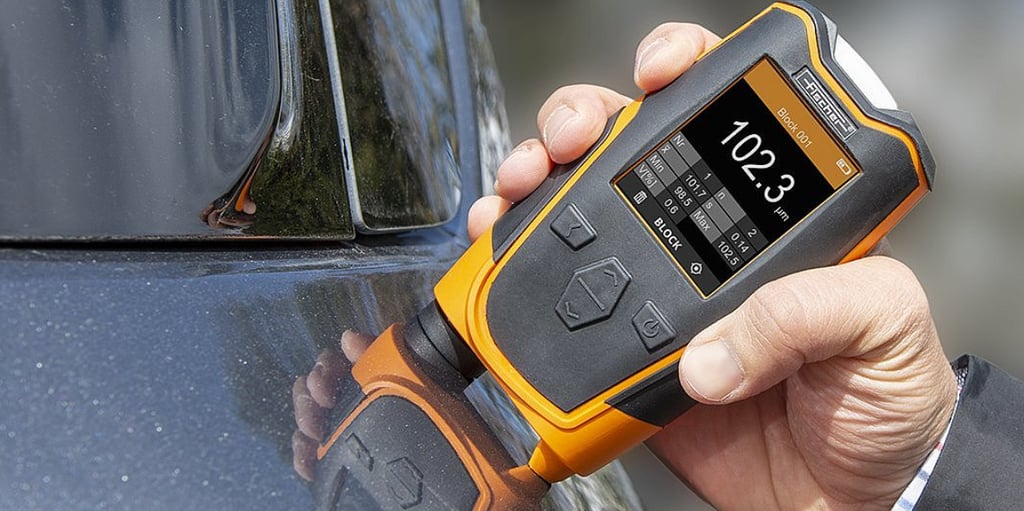

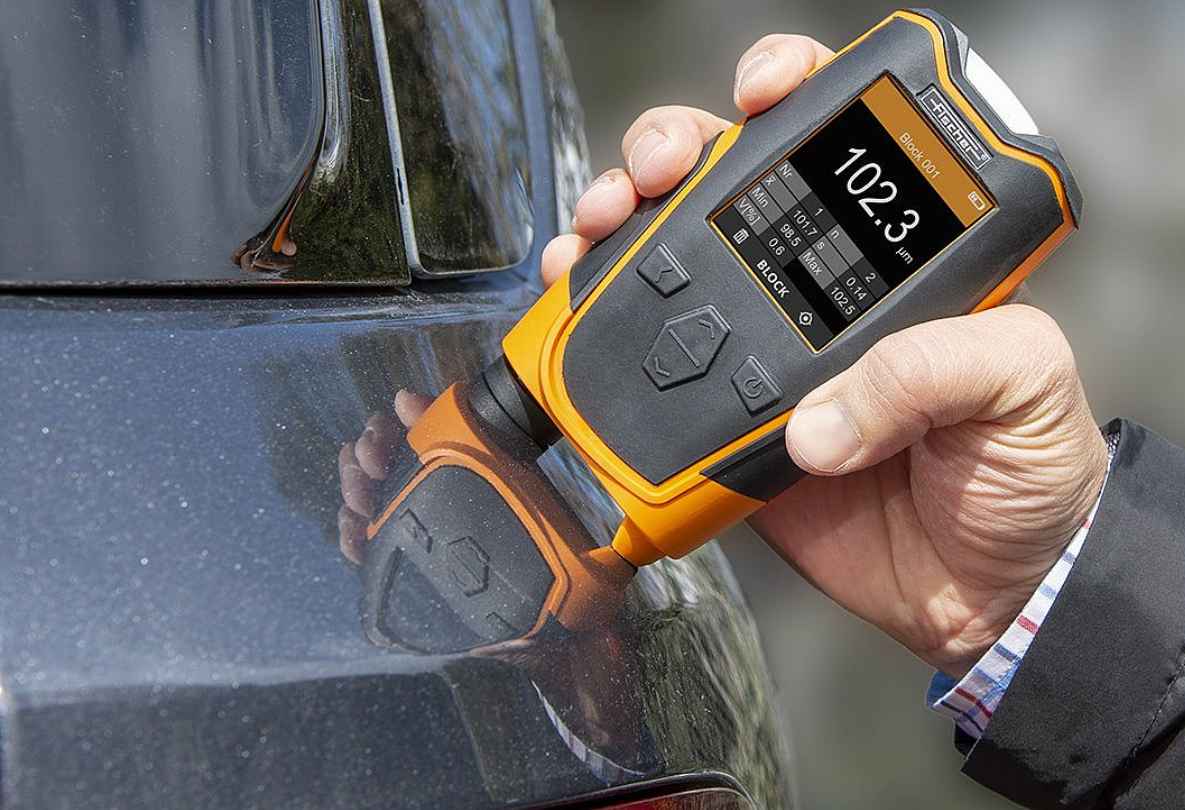

As an all-rounder, the MMS Inspection DFT is the perfect choice for coating thickness measurement on steel and non-ferrous metals. The housing complies with IP65 and delivers absolutely reliable measurement results – even under very harsh conditions. Thanks to the precise dual probe, the device automatically detects the base material and also impresses when measuring thin layers with very low measurement uncertainty.

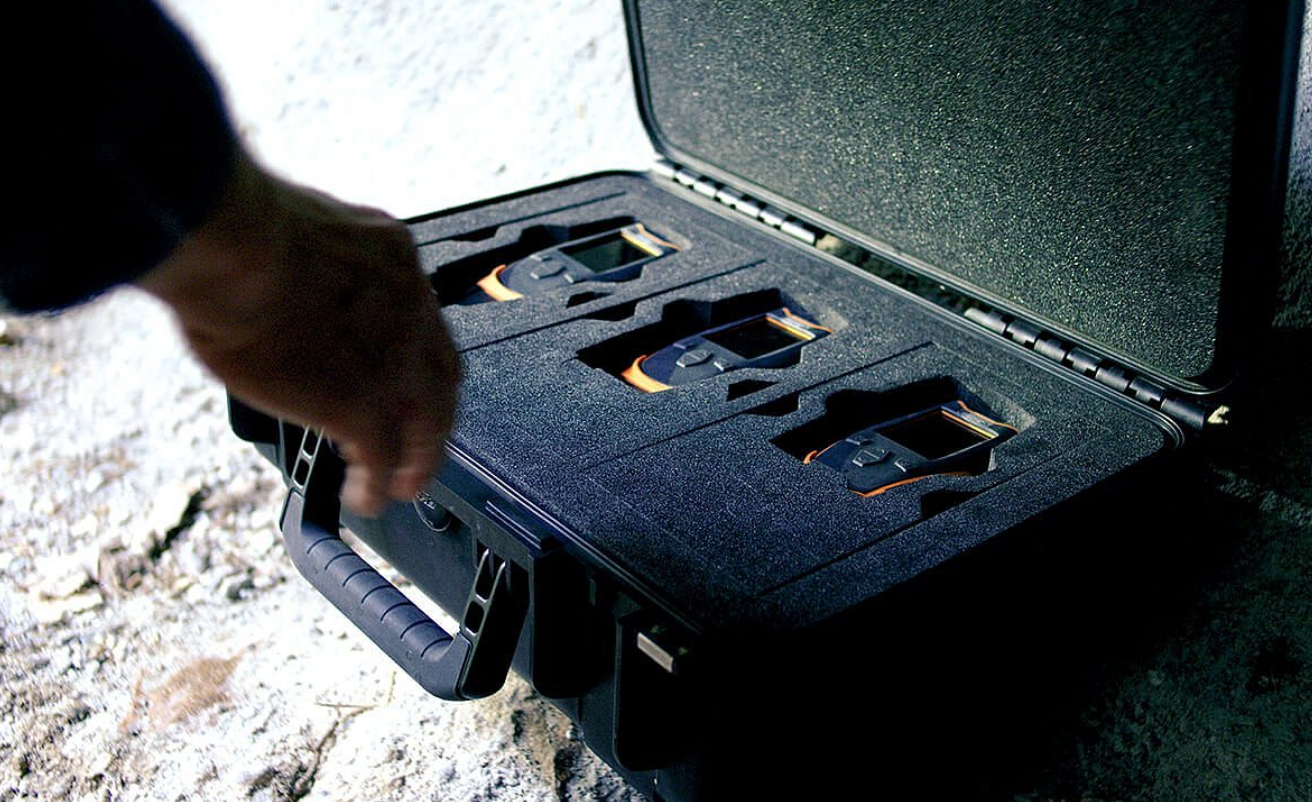

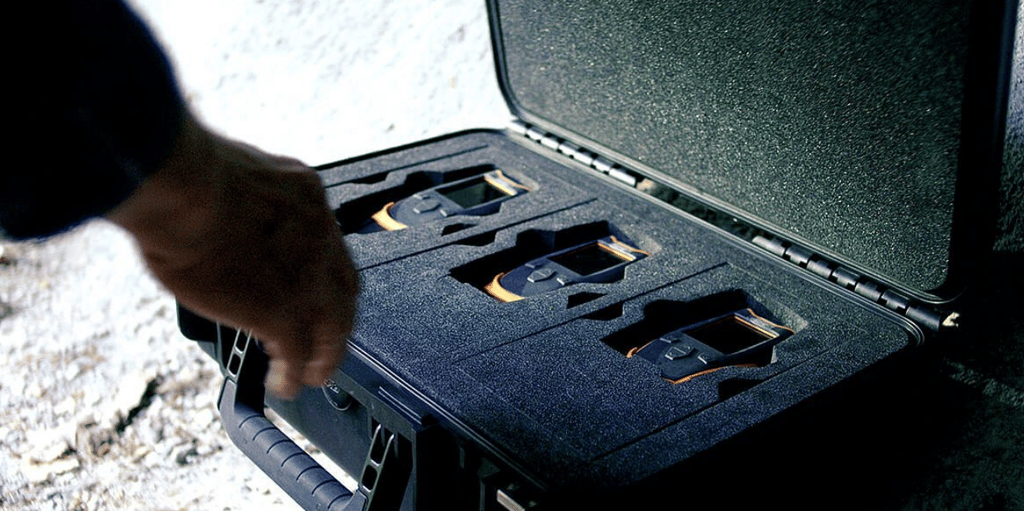

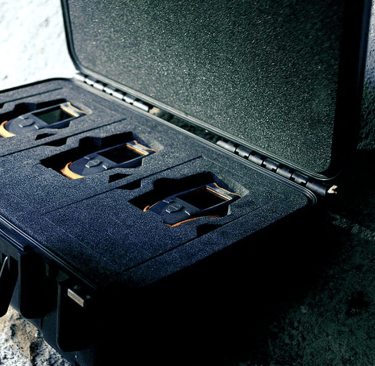

The MMS Inspection DFT is part of the three-part MMS Inspection corrosion kit, the Fischer handheld measuring gauges for comprehensive corrosion protection.

Built to last.

Extremely robust thanks to dust- and splash-proof housing

Perfect fit.

Easy one-hand operation through compact design

Modern and intuitive user interface.

Rotating display for any viewing angle and in poor lighting conditions

Your security.

Reliable measurement results thanks to resistant probe pole

Full measuring control.

Feedback via light, sound and vibration whether measured values are within tolerance

Easy calibration.

Achieve the highest level of accuracy

• Limit value monitoring via light, sound and vibration, depending on device version

• Measured value memory: 10,000 in one batch or 250,000 in 2,500 batches, depending on device version

• Battery for > 8h operating time

• Easy data transfer via USB and Bluetooth, depending on the device version

• Dual probe with high-precision conductivity compensation integrated in the device

• Measuring method: Magnetic inductive and amplitude sensitive eddy current

• Measuring method: Magnetic inductive and amplitude sensitive eddy current

• Optional industrial package (High): 4 preconfigured batch types especially for coating thickness measurement in the industrial sector

• Dust- and splash-proof according to IP65

• Compliant with IMO PSPC, SSPC-PA2, ISO 19840, AS 3894.3 and SIS 184160, depending on device version

Product Video

• MMS® Inspection DFT tutorial: Introduction and calibration

Compliant with : IMO PSPC, SSPC-PA2, ISO 19840, AS 3894.3 and SIS 184160,

Measuring range : 0 - 2,500 µm (FE), 0 - 2,000 µm (NF)

Measured value memory : 10,000 in one batch or 250,000 in 2,500 batches, depending on device version

Data Transfer : Easy data transfer via USB and Bluetooth, depending on the device version
